Water Bottle P20 Blow Molding Mold , 5L Plastic Molding

Ningbo Shuangde Tianli Machinery Manufacturing Co., Ltd.

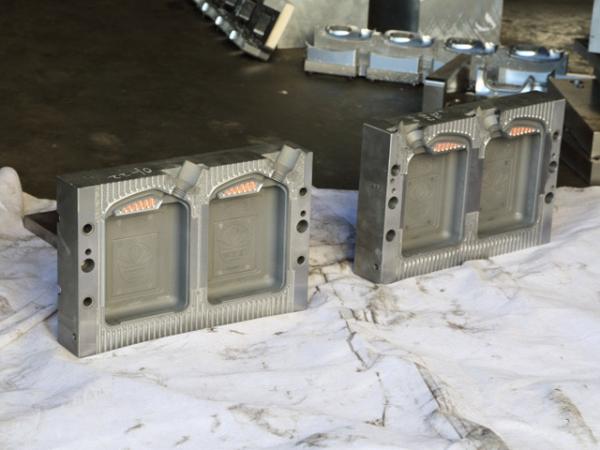

Water Bottle P20 Blow Molding Mold , 5L Plastic Molding

  • 1
  • 2

Brand Name : SHUANGLI

Model Number : SLM

Certification : ISO9001:2015, CE

Place of Origin : CHINA

MOQ : 1 SET

Price : Price negotiation.

Payment Terms : L/C, T/T

Supply Ability : 100 Set per month

Delivery Time : 20 woking day

Packaging Details : Standard export package

Product : Plastic Water Bottle Mold

Max capacity : 5L

Type : Extrusion blow mold

Material : SS2316, Alu+BeCu, P20.

Cavity : 1-2 cavities

Function : Deflashing

Contact Now

Blow Mold Plastic Water Bottle with Auto-deflashing system for Blow Molding Machine

1.Mold material: SS2316, Alu+BeCu, P20.

2.Blow Mold Plastic Water Bottle with Auto-deflashing system for Blow Molding Machine

Centralized heating makes even, stable effect, and reduces power consumption mostly.

Close-loop heating control system with cor responsive high accurate digital meter, and imported adjustable high power frequency controller, make sure stable heating, energy saving and not to be affected by fluctuated voltage. is fully considered for lower power consumption and higher production efficiency.

3, For blow machine.

SPECIFICATION SLBU-65
MATERIAL   PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T
CLAMPING UNIT
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18
